Hydroxypropyl Methylcellulose (HPMC) in Construction: Functional Mechanisms and Performance Benefits

1. Introduction

Hydroxypropyl methylcellulose (HPMC), a non-ionic cellulose ether, is widely employed in construction materials due to its multifunctional properties, including water retention, thickening, adhesion enhancement, and workability modification. Its chemical structure—comprising methyl and hydroxypropyl substitutions—confers solubility in cold water while maintaining thermal gelation properties, making it indispensable in modern building applications.

2. Key Functional Properties

2.1 Water Retention Capacity

HPMC significantly reduces water evaporation rates in cementitious systems, extending hydration time and enhancing mechanical strength development. Studies indicate that even low dosages (0.1–0.3% by weight) can improve water retention by >90%, mitigating plastic shrinkage cracks.

2.2 Rheological Modification

• Viscosity Control: Adjusting HPMC molecular weight (40,000–200,000 Da) allows precise regulation of mortar consistency, from self-leveling compounds (low viscosity, 400–1,000 mPa·s) to thick-layer renders (high viscosity, 60,000+ mPa·s).

• Yield Stress Reduction: Acts as a lubricant, decreasing shear stress during pumping/spraying applications.

2.3 Adhesion Promotion

Hydrogen bonding between HPMC hydroxyl groups and substrate surfaces increases interfacial bond strength by up to 30%, critical for tile adhesives (EN 12004 compliance) and external insulation systems (ETICS).

2.4 Anti-Sagging Performance

Thixotropic behavior enables vertical application without slump, with optimal performance at 20,000–60,000 mPa·s grades (per ASTM C1437 sag resistance testing).

3. Primary Applications in Construction Materials

Application	Function	Recommended HPMC Grade

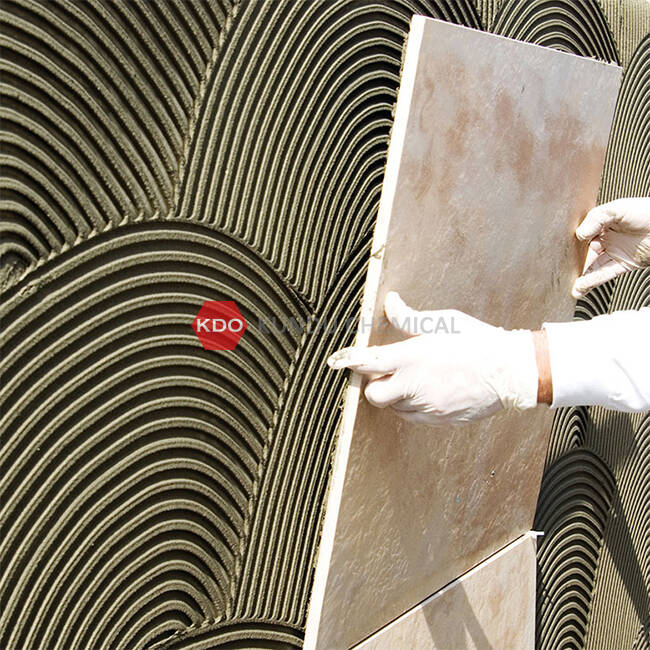

Tile Adhesives (C2TE)	Enhances wet adhesion, open time, and deformability	15,000–20,000 mPa·s (KDOCEL MP 100M)
Self-Leveling Underlayments	Improves flowability while preventing segregation	400–600 mPa·s (KDOCEL MP 400)
Gypsum Plasters	Retards setting, reduces cracking	10,000–15,000 mPa·s (KDOCEL MP 40DE)

4. Synergistic Effects with Other Additives

• Redispersible Polymer Powders (RPP): Co-use enhances flexibility and tensile adhesion (e.g., VAE-based RPP + HPMC in flexible tile adhesives).

• Air-Entraining Agents: HPMC stabilizes microbubbles, improving freeze-thaw resistance (ASTM C666).

• Retarders (e.g., citric acid): Compatible without viscosity loss.

5. Technical Selection Criteria

• Substitution Type: DS (methyl) = 1.5–2.0, MS (hydroxypropyl) = 0.1–0.3 for balanced solubility/thermal stability.

• Particle Size: Fine powders (<80 μm) ensure rapid dispersion without clumping.

• Ash Content: <1.5% to avoid alkali reactivity in high-pH systems.

6. Environmental and Compliance Aspects

• Biodegradability: Fully complies with OECD 301B standards.

• VOC-Free: Meets LEED v4.1 and BREEAM requirements for sustainable construction.

7. Conclusion

HPMC’s versatility in modifying fresh and hardened state properties of construction materials makes it a cornerstone additive for high-performance formulations. Ongoing research focuses on nano-modified HPMC derivatives for ultra-high-strength composites.
