A technology that combines silicone molds with a vacuum environment is driving a paradigm shift in product development and production in the automotive, aerospace and medical fields.
With the manufacturing industry's pursuit of personalization and rapid updating, vacuum casting technology has become an innovative method of manufacturing small-scale precision parts due to its low-cost molds and short cycle times. The technology injects liquid polyurethane into silicone molds under vacuum conditions to create high-precision parts that are bubble-free and have properties almost equivalent to injection-molded products, bringing unprecedented flexibility to the product development stage.
This article provides a comprehensive overview of the key considerations in the vacuum casting process. We'll show you the vacuum casting instruction necessary for project success, from the basics to advanced practices. But before we dive in, let's take a brief look at the process itself.
Technical Principles and Core Features
Vacuum casting (also known as silicone casting) is a soft mold technology that centers on the use of silicone molds to replicate complex parts in a vacuum environment. The process is realized through five systematic steps:
1. 3D modeling and master model production: Based on CAD design, a high-precision master model is produced through CNC machining or 3D printing.

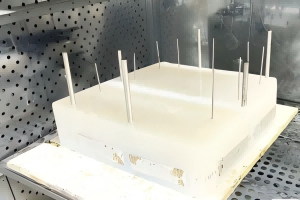

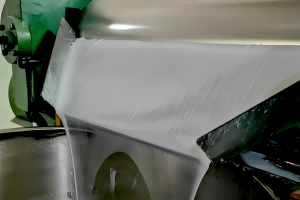

2. Silicone molding: Liquid silicone is poured into the master mold and cured at 40°C for 10-16 hours to form a flexible mold.

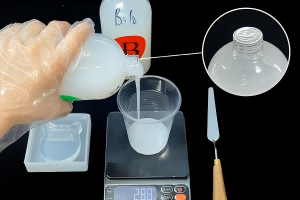

3. Vacuum pouring: After mixing the two-component polyurethane resin, inject it into the mold under vacuum environment to eliminate air bubbles completely.

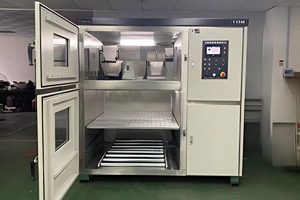

4. Heat curing treatment: the parts are cured at 40-70℃ for 30 minutes to 4 hours (depending on the size).
5. demolding and post-processing: the mold is dismantled and the sprue is cleaned to obtain a ready-to-use part.
Intelligent voice assistants are also powerful helpers in the office scenario. You can query information, send emails, and take notes through voice commands, greatly improving work efficiency. In addition, intelligent document processing tools can automatically recognize text, tables, and pictures in documents, realize rapid editing and format conversion, and save a lot of time and energy.
Intelligent voice assistants are also powerful helpers in the office scenario. You can query information, send emails, and take notes through voice commands, greatly improving work efficiency.
ABS-like Resins replicates the core properties of ABS plastic, achieving a balance between strength and flexibility. Its surface detail performance is comparable to that of injection-molded parts, and it has special specifications such as flame-retardant, food-grade, and UV-resistant, making it suitable for a wide range of scenarios. As a cost-effective solution for prototyping and low-volume production, the material is widely used in consumer electronics, automotive parts and toy manufacturing due to its excellent mechanical properties, fine surface quality and detail reproduction.
Popular for its flexibility, impact resistance and chemical stability, polyethylene resin is suitable for producing packaging components, containers and flexible parts. It also offers durability and toughness, as well as excellence in fatigue and chemical stability, making it an ideal material for manufacturing snap fastener connectors and automotive parts that maintain consistent performance under harsh conditions.

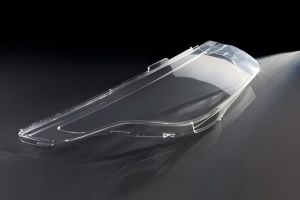

Acrylic vacuum casting resins based on PMMA combine high transparency and anti-aging properties. With a light transmission rate of up to 92% and excellent surface hardness and gloss, the addition of UV-resistant additives effectively prevents outdoor light aging. In the manufacture of lamps and lanterns, it can precisely create complex optical structures and enhance light diffusion; in the field of medical devices and display equipment, its transparency and weather resistance make it an ideal material. The vacuum casting process ensures millimeter-level precision and long-term stability of complex shapes, providing cost-effective and quality-assured material solutions for various industries.
Known for their small molecular weight and branched structure, silicone resins offer excellent heat resistance and properties that are superior to those of conventional rubbers. Their thermal stability allows them to withstand temperatures of up to 500 degrees Celsius for short periods of time, making them extremely important in the fields of electrical insulation and mold release agents. These properties make silicone resins essential in industries requiring high temperature resistant materials, ensuring reliability and performance.
Epoxy resin is synthesized through a chemical reaction and offers excellent durability, resistance to abrasion, corrosion and harsh weather. It can withstand pressure without deformation and is therefore considered a strong adhesive. Epoxy resins are used in a variety of applications, including construction, industrial production and woodworking, due to their excellent adhesion, suitability and temperature resistance. It is used both as a composite matrix and as a surface protection layer, and epoxy resins are also used in casting and in the manufacture of sculptures, jewelry and handicrafts.
TPU-based resins act as a versatile transition material between hard plastics and soft rubbers, combining both soft and hard phases. This allows them to exhibit excellent elasticity and flexibility, making them particularly suitable for short cycle production processes and extremely short development cycles. In addition, polyurethane resins are characterized by high temperature resistance, high elasticity and high modulus.
Industry Applications and Breakthrough Cases
Vacuum casting technology has demonstrated its value in many high-end manufacturing fields:
Aerospace field: manufacturing aircraft ducts, cabin components and other non-structural parts, to meet the special needs of small quantities of precision parts
Medical equipment field: applied to customized prosthetic limbs, orthopedic appliances and medical equipment shells, to give full play to the advantages of its personalized customization
Vacuum casting technology has infiltrated into a number of high-end manufacturing fields, becoming an indispensable part of product development. Vacuum casting technology has penetrated several high-end manufacturing sectors and has become an integral part of product development. In the automotive industry, the technology is used to produce a variety of tubes, water tanks, air filter housings, radiator parts, lampshades, chips, gears and movable hinges.
The consumer electronics industry has also benefited. Cell phones, TVs, cameras, players, sound systems and computers are widely used in the manufacture of keyboards and housings vacuum casting technology. Because this technology can provide 10-50 high-quality prototypes in a short period of time, it avoids the long lead times and high costs associated with manufacturing injection molds.
YangChi Vacuum Casting Technology Helps Rapid Product Realization
In the key aspect of product development, how to realize small-lot manufacturing of complex plastic and rubber parts at low cost? Vacuum casting technology, with its cost-effective and high-precision advantages, has become the core choice of many product teams for functional testing and prototype verification, and is widely used in automotive, medical, consumer electronics and other fields.
As a leading vacuum casting solution provider, YangChi has redefined the standard of customized production with our professional strength. We bring together senior engineering teams and top quality control experts to ensure the superior quality of every product, regardless of the size of the project - from single-piece prototyping to 1,000-scale mass production - in strict compliance with international manufacturing standards. Relying on self-developed intelligent production system and advanced vacuum casting equipment, we break the traditional high-cost threshold, so that enterprises can enjoy efficient and accurate manufacturing services without huge investment in equipment.
YangChi's vacuum casting services cover the full range of process requirements, from conceptual design to finished product delivery seamlessly. We specialize in handling all types of complex elastomeric parts, eliminating air bubbles and imperfections through a precision casting process in a vacuum environment, ensuring that the surface finish and structural strength of parts reach industry-leading levels. What's more, our commitment to rapid response and speedy delivery helps companies dramatically shorten product development cycles and seize market opportunities.
Whether you're a startup team looking to validate a prototype, or a mature company in need of customized parts, YangChi can be your trusted manufacturing partner. Simply upload your CAD design files to get transparent, accurate and instant quotes, and enjoy one-stop service from technical consultation to after-sales support.
Combining 3D printing and vacuum casting technology, the vacuum casting process will be significantly accelerated. Compared with CNC machining, additive manufacturing shows faster and more cost-effective, this integrated manufacturing method is expected to shorten the product development time, reduce the difficulty of innovation, so that the polyurethane vacuum casting technology from the edge of the process is gradually transformed into the core strength of the manufacturing industry. With the continuous progress of the technology, breaking through the limitations of the size and improve the degree of intelligence, it will be in a wider range of fields to show: even small batch production can achieve large-scale manufacturing effect.
