R&D in UQD(Universal Quick Disconnect) of Water Cooling System in Data Processing Centers

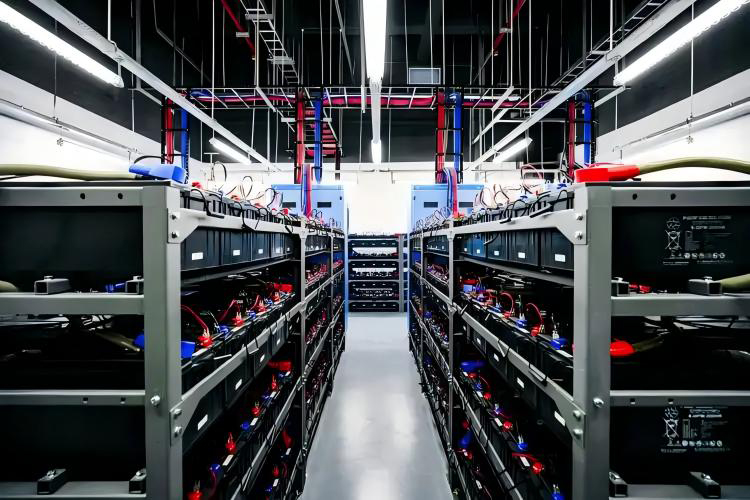

In today's digital age, data centers are core facilities for information processing and storage, and their efficient and stable operation is essential. With the continuous growth of data processing volume, the heat dissipation problem of data centers has become one of the key factors restricting its development.

In today's digital age, data centers are core facilities for information processing and storage, and their efficient and stable operation is essential. With the continuous growth of data processing volume, the heat dissipation problem of data centers has become one of the key factors restricting its development. The water cooling system has become an important solution for thermal management of data centers due to its efficient heat dissipation performance. However, the maintenance and connection efficiency of the water cooling system have always been challenges faced by the industry.

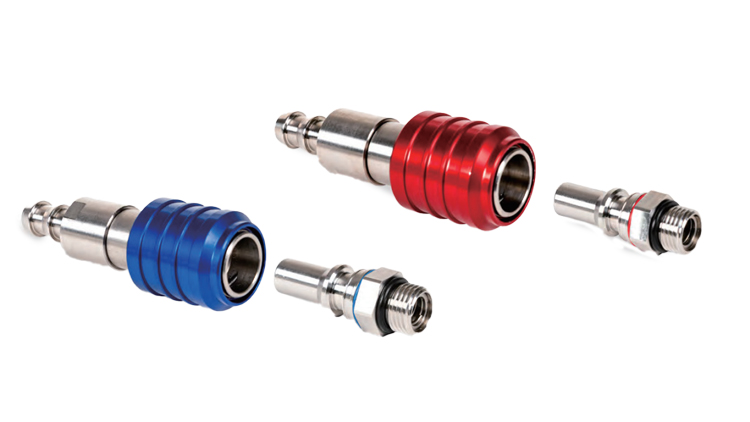

This quick-connect connector is designed for the water cooling system of the data processing center, and its core lies in a unique press component design. The quick-connect connector consists of a female body and a male body. The male body is integrated with a press component, including a press block, a spring and a telescopic rod. This design not only achieves fast plugging and unplugging, but also ensures the firmness and sealing of the connection.

In actual operation, the user only needs to align the male body with the female body and then press the press block. At this time, the press block will compress the spring, the telescopic rod will shrink, and the press block will enter the groove of the female body. Subsequently, the insertion end of the male body is inserted into the female body, and the male body is continued to be pushed until the press block is aligned with the through groove on the female body. Under the elastic force of the spring, the pressure block automatically snaps into the through slot, thereby achieving a firm connection between the male body and the female body. When it needs to be pulled out, just press the pressure block again to easily pull out the male body. The whole process is simple and fast, easy to operate, and greatly improves maintenance efficiency.

This quick-plug connector is not only innovative in design, but also performs well in multiple technical dimensions. First, its quick plug-in function significantly reduces the maintenance time and cost of the data center cooling system. Traditional connectors often require complex tools and cumbersome operating steps during installation and removal, while Master's quick-plug connectors can be connected and disconnected with a simple press operation, greatly improving work efficiency.

Secondly, the quick-plug connector performs well in terms of connection firmness and sealing. The matching design of the spring and telescopic rod ensures that the pressure block can be tightly inserted into the through slot, maintaining a stable connection even in a high-pressure water flow environment, and effectively preventing the leakage of coolant. This is especially important for the water cooling system of the data center, because any liquid leakage may cause equipment damage or even data loss.

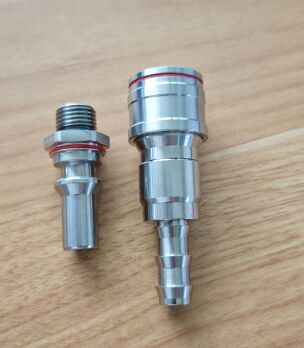

Stainless steel quick-plug connectors also have good corrosion resistance and anti-aging properties. Its materials have been specially processed to adapt to the complex operating environment of the data center, extend its service life and reduce the frequency of replacement.
