How to Choose Rolling Mill Bearings for Steel Plants

Rolling mill bearings play a pivotal role in the steel manufacturing process. These components support the rolls, enabling smooth rotation and reducing friction between moving parts. Without high-performance bearings, the entire operation of a steel plant can be jeopardized. Think of them as the unsung heroes—small in size but massive in function.



Rolling mill bearings play a pivotal role in the steel manufacturing process. These components support the rolls, enabling smooth rotation and reducing friction between moving parts. Without high-performance bearings, the entire operation of a steel plant can be jeopardized. Think of them as the unsung heroes—small in size but massive in function.

In steel plants, especially those dealing with high-speed and high-load rolling operations, bearing failure can lead to catastrophic consequences. Downtime due to bearing damage doesn’t just disrupt operations—it costs millions. That’s why choosing the right bearing is a critical decision for any mill engineer or maintenance supervisor.

Moreover, bearings in rolling mills are exposed to extreme loads, vibrations, high temperatures, and contaminated environments. Standard industrial bearings simply won’t cut it. Instead, specialized rolling mill bearings are engineered to withstand these tough conditions while delivering reliability and longevity.

A well-selected bearing ensures:

• Minimal maintenance and breakdowns

• Consistent product quality

• Enhanced operational efficiency

• Reduced downtime

In short, bearings aren't just mechanical components; they’re the lifeline of a steel plant’s rolling operation.

Role of Rolling Mills in Steel Manufacturing

Rolling mills are essential machinery in steel plants, designed to shape and form metal into desired profiles. Whether it’s hot rolling or cold rolling, these mills compress and stretch raw metal into sheets, bars, rods, or other forms using massive pressure between rotating rolls.

The process relies heavily on continuous movement, which is where bearings step in. Each roll is supported by bearings that must endure enormous radial and axial forces while maintaining smooth operation. In a typical steel plant, you might find several types of rolling mills—like two-high, four-high, tandem, or cluster mills—each with unique bearing requirements.

Bearings in these setups must:

• Support the weight of the rolls and the metal being processed

• Handle thermal expansion and vibrations

• Withstand shock loads and prevent metal-to-metal contact

• Work continuously under severe loads without failing

That’s why choosing the right bearings is not just a mechanical decision but a strategic one—impacting production efficiency, safety, and profitability.

Types of Rolling Mills and Their Bearing Needs

Classification of Rolling Mills

Rolling mills come in various configurations, each designed for specific tasks and bearing different load conditions. Understanding the type of mill is crucial to selecting the appropriate bearings.

Here are the most common types:

Two-High Mills – Simple mills with two opposing rolls, mainly for initial breakdown of ingots.
Four-High Mills – Feature two working rolls and two backup rolls, ideal for thin steel sheets.
Cluster Mills (Sendzimir Mills) – Use multiple small-diameter rolls for high precision.
Tandem Mills – A series of rolling stands that allow continuous processing for large production runs.
Planetary Mills – Utilize smaller rolls orbiting around a central roll, ideal for hot rolling.
Each of these setups demands specific bearing capabilities. For instance:

Two-high and four-high mills need high radial load-carrying capacity.
Cluster mills need compact, high-precision bearings due to limited space.
Tandem mills require bearings that can endure high-speed, continuous operation without overheating.

Bearing Requirements Based on Mill Type

Different mills translate to different expectations from bearings. Let’s break down what’s needed based on the mill type:

Two-High and Four-High Mills:

Bearings must carry heavy radial loads
Excellent misalignment tolerance
Resistance to wear under heavy pressure

Tandem Mills:

Require high-speed bearings with minimal heat generation
Superior lubrication systems to ensure longevity
Designed for continuous operation with low maintenance

Cluster and Planetary Mills:

Space-saving bearing designs
High precision and load-sharing features
Must handle rapid direction changes and varying loads

In all cases, the choice of bearings must also consider alignment needs, shock resistance, and service life. A bearing that fails prematurely not only halts production but could damage costly machinery. That’s why steel plants work closely with bearing suppliers to match every bearing with the exact mechanical requirements of each rolling stand.

Types of Bearings Used in Rolling Mills

Cylindrical Roller Bearings

Cylindrical roller bearings are commonly used in steel rolling mills due to their ability to support high radial loads and high-speed performance. These bearings consist of an inner ring, an outer ring, and cylindrical rolling elements that allow for minimal friction under load.

Why are they popular in rolling mills? They excel at:

Handling heavy radial loads
Providing low friction operation at high speeds
Allowing axial displacement in one direction (depending on design)

These bearings are ideal for applications where axial loads are minimal or can be managed separately. For instance, in four-high rolling mills, cylindrical roller bearings are often used for backup rolls, as they provide the robustness needed for the heavy loads imposed by the metal strip.

However, one drawback is their limited axial load capacity. Hence, they are often paired with thrust bearings in applications where both load types are present. Also, they are highly sensitive to misalignment, so proper mounting and alignment are crucial to prevent early failures.

To summarize:

Pros: High radial load capacity, low friction
Cons: Low axial load support, alignment sensitive

Tapered Roller Bearings

Tapered roller bearings are engineered to handle both radial and axial loads simultaneously. Their design features conical rollers and raceways, enabling them to support heavy loads at an angle.

These bearings are typically found in:

Work roll applications where combined loads are prevalent
Backup rolls in some rolling stands where axial forces need support

Why choose tapered roller bearings?

They distribute loads more evenly
Support both thrust and radial forces
Excellent shock load resistance

The downside? They generate more friction compared to cylindrical bearings, especially at high speeds. Also, they often require precise preload settings during installation to avoid excessive wear or heat generation.

Nevertheless, in steel mills where both axial and radial forces are significant, tapered roller bearings are often the go-to solution. Their robust design and load versatility make them a key player in maintaining rolling mill efficiency.

Spherical Roller Bearings

Spherical roller bearings are another go-to choice for rolling mills, particularly in high-load and misalignment-prone environments. What sets them apart is their two rows of barrel-shaped rollers and a spherical raceway that allows for angular misalignment.

These bearings are exceptionally suited for:

Heavy-duty applications like hot strip mills
Conditions where shaft deflection and misalignment are common
Operating under extreme radial and axial loads

Steel mills love these bearings because they offer:

Outstanding load-carrying capacity
Self-aligning capabilities
Durability under high-temperature conditions

Despite being a bit bulkier than other types, their resilience makes them invaluable in harsh operating conditions. One thing to consider, though, is they do produce more internal friction and heat, so proper lubrication and cooling systems are a must.

They’re often used in tandem with thrust bearings to share the axial load or to add precision to positioning in applications like roughing mills. If longevity and reliability are your top concerns, especially in challenging environments, spherical roller bearings are a solid bet.

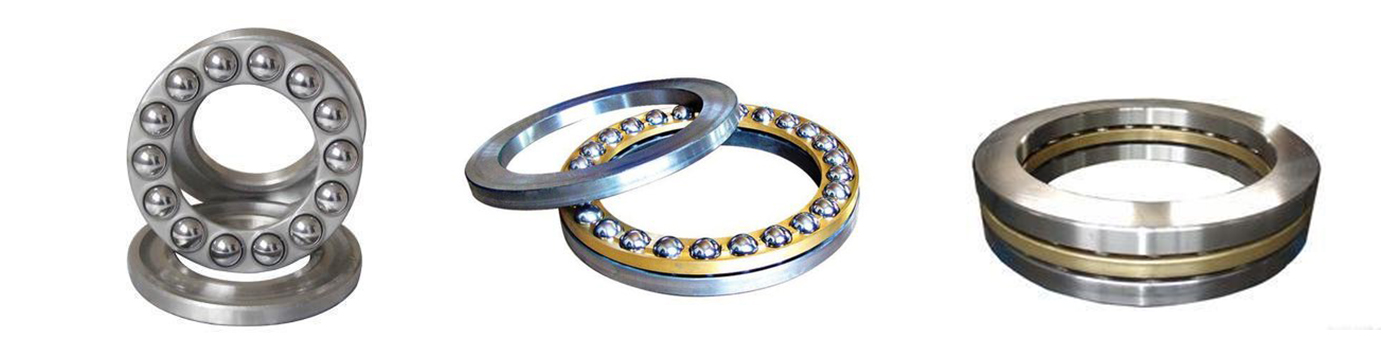

Thrust Bearings and Others

While cylindrical, tapered, and spherical bearings handle the brunt of the load, thrust bearings are essential for managing axial forces in rolling mill applications. These bearings are designed to support loads parallel to the shaft, making them perfect for locations in the mill where axial loads dominate.

Types of thrust bearings used include:

Tapered thrust roller bearings
Spherical thrust roller bearings
Cylindrical thrust bearings

Each offers unique benefits. For instance, tapered thrust bearings provide excellent shock absorption, while spherical thrust bearings allow some misalignment and can support high loads.

In addition to these, specialized bearings like CARB (Compact Aligning Roller Bearings) and hybrid ceramic bearings are used in high-speed or low-friction settings. These bearings come at a premium but offer extended service life and reduced maintenance needs.

Choosing these specialized solutions depends on your mill’s requirements—especially speed, load, and temperature. While they may require a higher initial investment, the payoff comes in the form of reduced downtime and fewer bearing replacements over time.

Key Factors in Selecting Rolling Mill Bearings

Load Capacity and Speed

The two most important performance indicators when choosing bearings for rolling mills are load capacity and operational speed. Both directly influence a bearing's life expectancy and efficiency.

Load capacity refers to the maximum load the bearing can handle without experiencing deformation or premature failure. In steel rolling mills, this load is often a mix of:

Radial loads (forces perpendicular to the shaft)
Axial loads (forces parallel to the shaft)

Heavy-duty rolling like slab, billet, or bloom rolling involves enormous pressures. This is why engineers lean toward bearings like spherical or tapered rollers that can withstand intense loading conditions.

On the flip side, operational speed determines the bearing's dynamic performance. High-speed mills—like tandem cold mills—need bearings that can run smoothly at thousands of RPMs without overheating or losing efficiency. In such cases, cylindrical roller bearings are preferred due to their ability to handle high speeds with minimal friction.

To strike the right balance between load and speed:

Always check the bearing manufacturer’s catalog for dynamic and static load ratings
Use software simulation tools for precise load calculations
Avoid oversizing; it adds cost and complexity without tangible benefits

Choosing bearings with higher-than-needed ratings may sound smart, but it can actually lead to reduced efficiency, increased energy consumption, and greater installation difficulty.

Misalignment Tolerance

Misalignment can be a silent killer for rolling mill bearings. Even a few degrees of deviation between the shaft and housing can cause edge loading, uneven wear, and ultimately, bearing failure.

That's where misalignment tolerance comes into play. Different types of bearings offer varying levels of forgiveness when it comes to shaft deviation:

Spherical roller bearings are kings of misalignment handling
Tapered roller bearings offer moderate tolerance
Cylindrical roller bearings offer minimal misalignment allowance

Steel mills often deal with shaft deflections due to temperature fluctuations, heavy loading, and imperfect alignments. Therefore, self-aligning bearings or those with design features that allow for angular movement are preferable in such scenarios.

To minimize misalignment problems:

Ensure proper housing and shaft fit
Use precise installation tools and techniques
Regularly inspect and align the rolling mill stands

Remember, a bearing might be top-tier, but without proper alignment, it won’t last long. Misalignment doesn’t just kill bearings—it wreaks havoc on your entire rolling operation.

Lubrication and Maintenance

Lubrication is to bearings what blood is to the human body. Without it, even the best-designed bearing will fail prematurely. In the high-load, high-temperature world of steel rolling mills, proper lubrication is not optional—it’s essential.

There are typically two types of lubrication systems used:

Grease lubrication – Simple, low maintenance, but limited by temperature and load
Oil lubrication – Offers superior cooling and cleanliness, ideal for heavy-duty applications

Automatic centralized lubrication systems are widely adopted in steel plants. These systems deliver precise quantities of lubricant at set intervals, reducing wear and extending bearing life.

Maintenance, on the other hand, involves:
Regular inspection of noise, temperature, and vibration
Replacement of damaged seals or contaminated lubricant
Monitoring via sensors for real-time diagnostics

Investing in condition monitoring tools like vibration analysis, thermography, and ultrasonic sensors can significantly improve predictive maintenance. This proactive approach minimizes unplanned downtime and helps optimize bearing life cycles.

Operating Environment Considerations

Steel mills are harsh. They’re hot, noisy, dusty, and subject to extreme vibration and shock. Bearings operating in such environments must be built like tanks—resilient, sealed, and resistant to contamination.

Temperature is a key challenge. Hot rolling operations can expose bearings to temperatures exceeding 200°C. In such cases, heat-treated bearing steel and high-temperature lubricants are non-negotiable.

Contamination is another killer. Water, scale, metal shavings, and dust can infiltrate bearings and destroy the raceways. To combat this:

Use bearings with sealed or shielded designs
Install protective covers and proper drainage systems
Ensure effective lubrication to flush out contaminants

Also consider vibration and shock—especially in reversing mills where roll direction changes rapidly. Bearings need strong cages and tight internal clearances to withstand these dynamic loads without cracking or breaking.

Simply put, the rolling mill environment is unforgiving. If your bearing can’t handle the heat, dust, and stress, it’s not the right choice—no matter how cheap or readily available it is.

Material and Heat Treatment of Bearings

Common Bearing Materials

The material from which a bearing is made is fundamental to its performance, especially in the intense environments of steel plants. Standard bearing steel just doesn’t make the cut when faced with the heavy loads, high temperatures, and harsh conditions found in rolling mills. That’s why manufacturers turn to specially formulated steels and alloys.

The most common materials used include:

Chrome Steel (GCr15 or 52100): This is a high-carbon chromium bearing steel known for its excellent hardness and wear resistance. However, it may struggle in high-temperature environments unless specially treated.
Carburizing Steels (like SAE 8620 or 18CrNiMo7-6): These are low-carbon steels with good toughness and fatigue resistance, ideal for large-sized or heavily loaded bearings that need to withstand shocks and variable loads.
High-Speed Steels and Tool Steels: Less common, but used in specialized rolling applications where extreme wear resistance is essential.
Stainless Steels (e.g., AISI 440C): Sometimes used in corrosive environments, though they offer slightly lower load capacities compared to hardened steels.
Beyond composition, purity plays a critical role. Bearings for steel plants must be made from high-purity steels to reduce the chance of inclusions that can cause fatigue cracks. These materials are often vacuum-degassed or electro-slag remelted to ensure cleanliness.
Choosing the right bearing material isn’t just about strength—it’s about tailoring performance to the unique conditions of your mill. A material too hard might be brittle, while one too soft won’t last. The goal is always the same: maximum durability under harsh and unpredictable operating conditions.

Heat Treatment Techniques for Durability

Heat treatment is what transforms raw steel into a bearing-grade marvel. Without it, the material simply wouldn’t stand up to the daily abuse inside a steel rolling mill. Through carefully controlled heating and cooling processes, manufacturers adjust the hardness, toughness, and fatigue resistance of bearing components.

Here are the most common heat treatment processes for rolling mill bearings:

Through Hardening: The entire bearing component is hardened to the same level. This method is quick and cost-effective but may reduce toughness.
Case Hardening (Carburizing and Nitriding): Only the surface is hardened, while the core remains soft and ductile. This provides a hard-wearing exterior with a shock-absorbing interior—ideal for large, heavily loaded bearings.
Induction Hardening: Localized hardening using electromagnetic fields—great for specific areas like raceways.
Sub-zero Treatment (Cryogenic Hardening): Freezes bearings below -80°C to convert retained austenite into martensite, improving dimensional stability and wear resistance.
Tempering: Done after hardening to reduce brittleness while retaining sufficient hardness.

Heat treatment isn't one-size-fits-all. For example:

Backup roll bearings may require high surface hardness to resist wear.
Work roll bearings might need tougher cores to absorb impact.
Bearings in hot rolling conditions need special heat-resistant alloys and processes.

Poor heat treatment = poor performance. Cracks, spalling, and sudden failures are often traced back to inadequate hardening or improper cooling. That’s why bearing manufacturers invest heavily in metallurgy and process control—to ensure every bearing stands up to the brutal life inside a steel mill.

Custom vs. Standard Bearings: Which One to Choose?

Advantages of Customized Bearing Solutions

When off-the-shelf bearings can’t meet the demands of your steel mill, custom bearings become a smart investment. These bearings are specifically engineered for your machinery, environment, and load conditions.

Advantages include:

Tailored materials and heat treatment for specific environments
Optimized load capacity for unique rolling stand configurations
Improved sealing solutions for better contamination protection
Integration with IoT sensors for real-time condition monitoring

Custom solutions may also combine functions—like integrating axial and radial load support into a single unit—reducing assembly complexity and improving performance.

They’re ideal for:

High-speed rolling mills
Compact spaces with complex load paths
Harsh environments where standard bearings wear out too fast

When to Use Standard Bearings

Standard bearings are widely available, cost-effective, and sufficient for many rolling applications. For mills that operate within standard load and speed ranges, these bearings can offer excellent performance with minimal lead times.

Benefits of using standard bearings include:

Faster procurement and delivery
Easier installation and replacement
Lower initial investment
Interchangeability across machines

They’re best suited for:

Smaller mills or light-duty operations
Applications with predictable loads and stable environments
Backup roll applications where extreme precision isn’t necessary

However, always ensure the selected standard bearing matches your mill’s load, speed, and alignment specifications. Skimping on specs can turn a good deal into a costly mistake.

FAQs

1. What’s the best type of bearing for hot rolling mills?
Spherical roller bearings are ideal for hot rolling mills due to their ability to handle high radial loads and compensate for misalignment in high-temperature environments.

2. How often should rolling mill bearings be replaced?
Replacement depends on load, speed, and maintenance practices, but typically ranges from several months to a few years. Predictive monitoring helps optimize this timeline.

3. Can standard bearings be used in high-speed rolling mills?
Only if they meet the speed and load ratings required. Often, custom or high-precision bearings are better suited for high-speed applications.

4. How do I prevent bearing failure in rolling mills?
Use proper mounting techniques, follow re-lubrication schedules, monitor vibration and temperature, and choose bearings designed for your specific application.

5. What are smart bearings and should I invest in them?
Smart bearings are sensor-integrated components that provide real-time data. They’re a great investment for high-value, critical applications where predictive maintenance reduces costly downtime.
